Spring Boot in One Shot — The Ultimate CheatSheet

Master Spring Boot from zero to hero with this comprehensive, no-fluff reference. Whether you're just starting out, preparing for interviews, or building a project, this cheat sheet packs everything you need — annotations, config, security, JPA, testing, deployment — with practical examples you can use immediately. No prior Spring experience required!

1. What is Spring Boot?#

Spring Boot is an extension of the Spring Framework that eliminates boilerplate configuration and setup. It provides embedded servers, auto-configuration, and production-ready features so developers can focus entirely on business logic rather than infrastructure.

Key Benefits:

• Zero XML configuration
• Embedded Tomcat, Jetty, or Undertow
• Auto-configures beans based on classpath

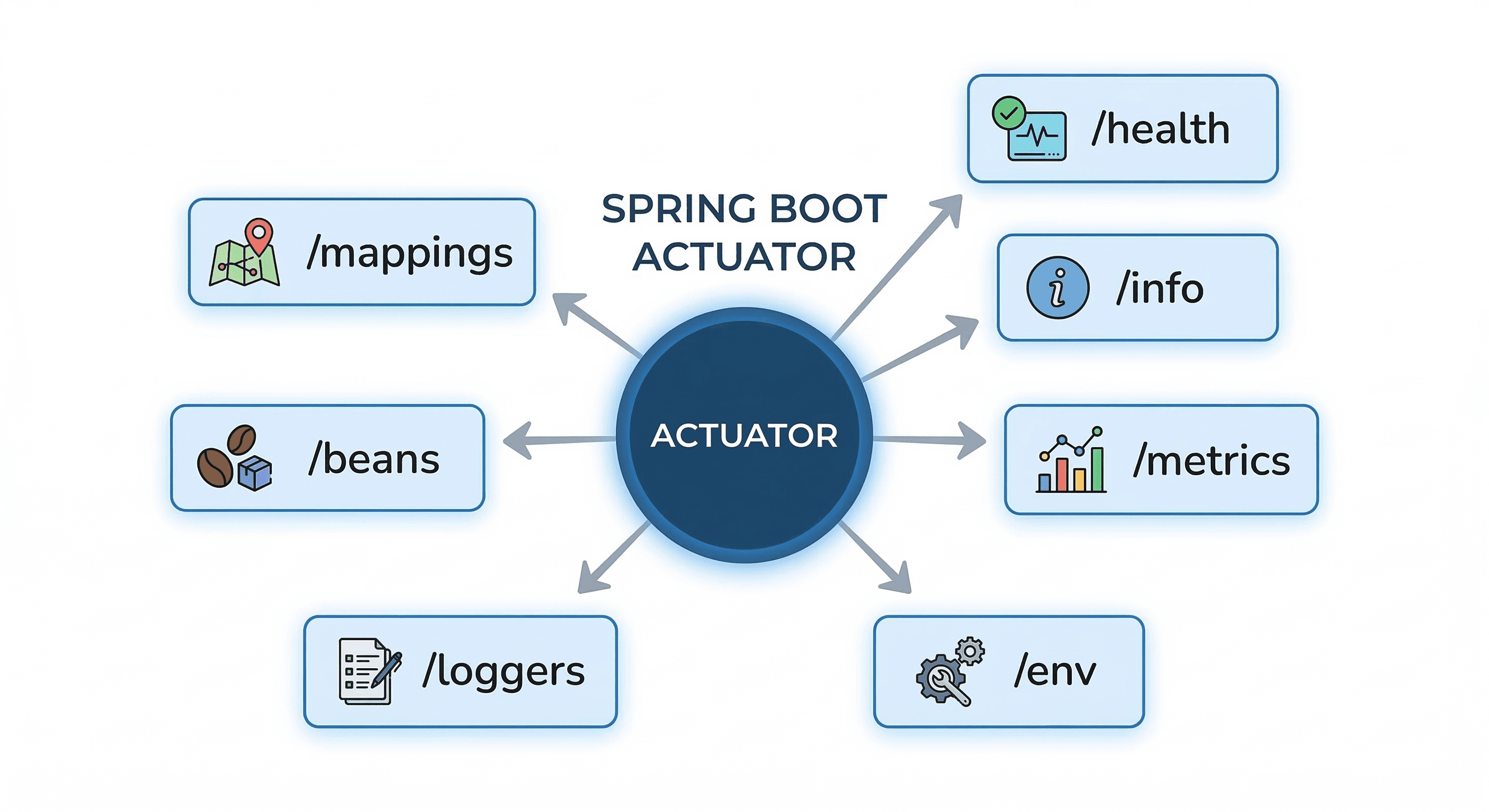

• Production monitoring via Actuator
• Single executable JAR deployment

Spring Boot vs Spring Framework:

2. Project Structure#

A standard Spring Boot project follows a layered package structure. Each folder represents a layer with a single responsibility, making the codebase easy to navigate and maintain.

src/main/java/com/example/
├── controller/       ← HTTP request/response handling
├── service/          ← Business logic
├── repository/       ← Database access
├── model/            ← Entities and DTOs
└── Application.java  ← Main entry point

src/main/resources/
├── application.properties  ← App configuration
└── static/                 ← Static files

3. Main Application Class#

@SpringBootApplication is a convenience annotation that combines three annotations into one. When SpringApplication.run() is called, it creates the ApplicationContext, triggers auto-configuration, and starts the embedded server.

@SpringBootApplication
public class Application {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

@SpringBootApplication internally combines:

• @Configuration — marks class as bean source
• @EnableAutoConfiguration — enables auto-config
• @ComponentScan — scans current package and sub-packages

4. Spring Starters#

Starters are pre-packaged dependency bundles for specific features. Instead of manually finding and matching compatible library versions, you add one starter and Spring Boot handles the rest.

5. Core Spring Concepts#

Inversion of Control (IoC)#

IoC means Spring takes control of object creation instead of you using the new keyword manually. The Spring IoC container creates, wires, and manages all objects (beans) throughout the application lifecycle.

// Without IoC — you manage everything
UserService service = new UserService(new UserRepository());

// With IoC — Spring manages everything
@Autowired
UserService service;

Dependency Injection (DI)#

DI is the mechanism through which IoC is implemented. Spring injects required dependencies into a class automatically, removing tight coupling between components.

Three types of DI:

// 1. Constructor Injection — Recommended
@Service
public class OrderService {
    private final PaymentService paymentService;

    public OrderService(PaymentService paymentService) {
        this.paymentService = paymentService;
    }
}

// 2. Setter Injection — for optional dependencies
@Service
public class NotificationService {
    private EmailService emailService;

    @Autowired
    public void setEmailService(EmailService emailService) {
        this.emailService = emailService;
    }
}

// 3. Field Injection — avoid in production
@Autowired
private UserRepository userRepository;

Beans#

A Bean is any Java object created and managed by the Spring IoC container. You register beans using stereotype annotations or @Bean inside a @Configuration class.

// Via annotation
@Component
public class EmailValidator { }

// Via @Configuration
@Configuration
public class AppConfig {
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }
}

Stereotype Annotations#

6. Configuration#

Spring Boot externalizes configuration so the same JAR can run in dev, test, and production without code changes. Configuration sources follow a priority order — higher sources override lower ones.

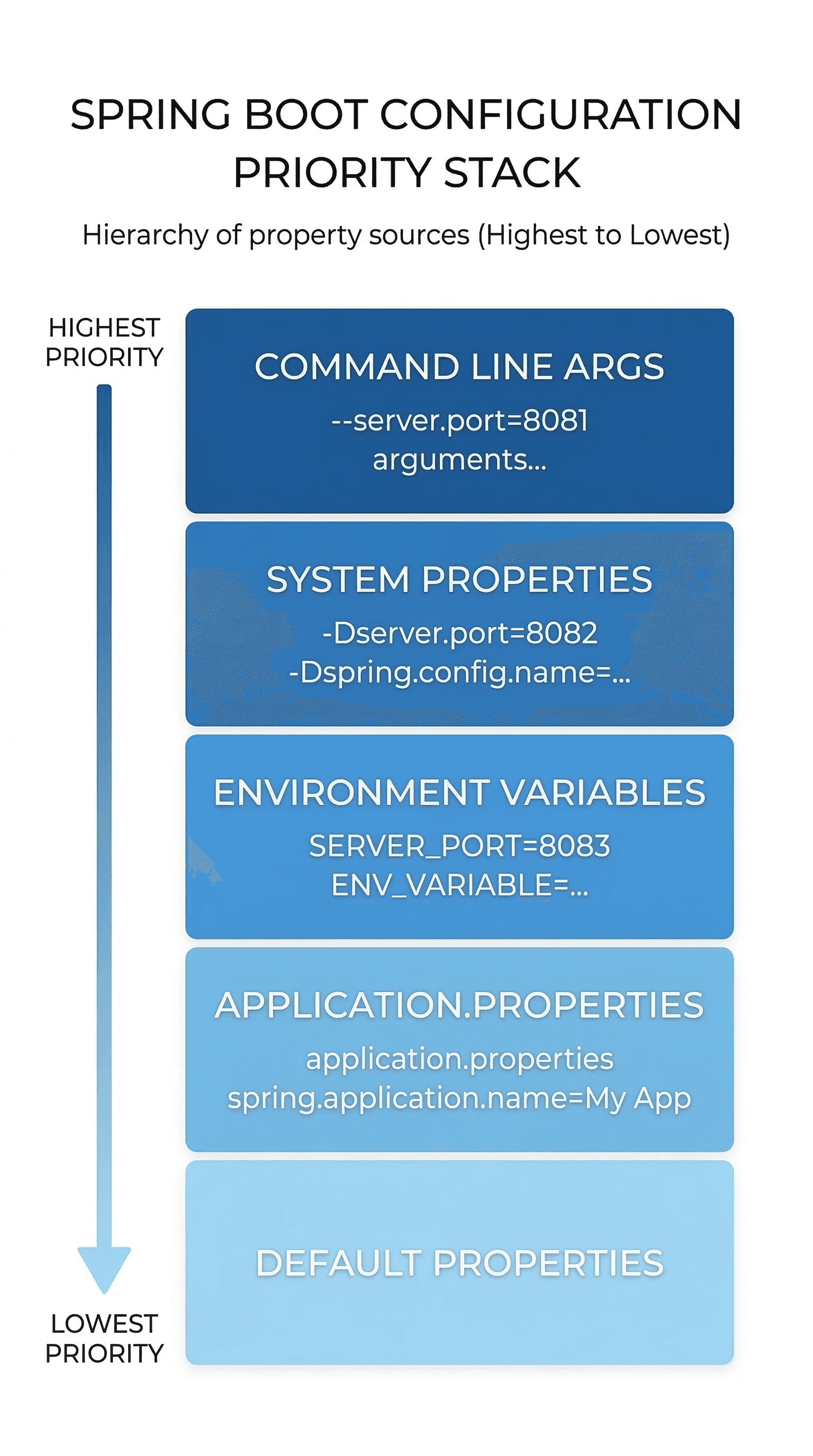

Priority order (highest to lowest):

1. Command line arguments
2. Java system properties
3. Environment variables
4. application.properties or application.yml
5. Default properties

application.properties:

server.port=8080
spring.datasource.url=jdbc:mysql://localhost:3306/mydb
spring.datasource.username=root
spring.datasource.password=${DB_PASSWORD}
spring.jpa.hibernate.ddl-auto=update
spring.jpa.show-sql=true
logging.level.com.example=DEBUG

application.yml (same config, hierarchical format):

server:
  port: 8080
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/mydb
    username: root
    password: ${DB_PASSWORD}
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true

Profiles#

Profiles let you define environment-specific configuration files. When a profile is active, Spring Boot loads both application.properties and the profile-specific file, with the profile file taking priority.

# Activate in application.properties
spring.profiles.active=dev

# Or at runtime
java -jar app.jar --spring.profiles.active=prod

Create separate files per environment:

• application-dev.properties
• application-prod.properties
• application-test.properties

7. REST API Development#

Spring Boot makes building REST APIs simple using annotation-based controllers and automatic JSON serialization via Jackson. REST follows stateless communication where each request contains all the information needed to process it.

HTTP Method to Annotation mapping:

Complete CRUD Controller:

@RestController
@RequestMapping("/api/users")
public class UserController {

    private final UserService userService;

    public UserController(UserService userService) {
        this.userService = userService;
    }

    @GetMapping
    public List<User> getAll() {
        return userService.getAll();
    }

    @GetMapping("/{id}")
    public ResponseEntity<User> getById(@PathVariable Long id) {
        return ResponseEntity.ok(userService.getById(id));
    }

    @PostMapping
    public ResponseEntity<User> create(@Valid @RequestBody UserRequest request) {
        return ResponseEntity.status(201).body(userService.create(request));
    }

    @PutMapping("/{id}")
    public ResponseEntity<User> update(@PathVariable Long id,
                                       @Valid @RequestBody UserRequest request) {
        return ResponseEntity.ok(userService.update(id, request));
    }

    @DeleteMapping("/{id}")
    public ResponseEntity<Void> delete(@PathVariable Long id) {
        userService.delete(id);
        return ResponseEntity.noContent().build();
    }
}

Request data extraction:

// From URL path: /users/5
@GetMapping("/{id}")
public User getUser(@PathVariable Long id) { }

// From query string: /users?role=admin&page=0
@GetMapping
public List<User> getUsers(
    @RequestParam String role,
    @RequestParam(defaultValue = "0") int page) { }

// From request body (JSON → Java object)
@PostMapping
public User create(@RequestBody UserRequest request) { }

HTTP Status Codes:

8. Validation and Exception Handling#

Bean Validation API provides declarative constraints on request objects. When @Valid is used in a controller, Spring automatically validates the incoming data before the method executes and throws MethodArgumentNotValidException if it fails.

Validation annotations:

DTO with validation:

public class UserRequest {

    @NotBlank(message = "Name is required")
    @Size(min = 2, max = 50)
    private String name;

    @NotBlank
    @Email(message = "Invalid email format")
    private String email;

    @Min(value = 18, message = "Must be at least 18")
    private Integer age;
}

Global Exception Handler:

@RestControllerAdvice centralizes exception handling across all controllers. Without it, Spring returns ugly stack traces. With it, every error returns a clean, consistent JSON response.

@RestControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(ResourceNotFoundException.class)
    public ResponseEntity<ErrorResponse> handleNotFound(ResourceNotFoundException ex) {
        return ResponseEntity.status(404)
                .body(new ErrorResponse(404, ex.getMessage()));
    }

    @ExceptionHandler(MethodArgumentNotValidException.class)
    public ResponseEntity<Map<String, String>> handleValidation(
            MethodArgumentNotValidException ex) {
        Map<String, String> errors = new HashMap<>();
        ex.getBindingResult().getFieldErrors()
          .forEach(e -> errors.put(e.getField(), e.getDefaultMessage()));
        return ResponseEntity.badRequest().body(errors);
    }

    @ExceptionHandler(Exception.class)
    public ResponseEntity<ErrorResponse> handleGeneric(Exception ex) {
        return ResponseEntity.status(500)
                .body(new ErrorResponse(500, "Unexpected error occurred"));
    }
}

9. Database Integration — Spring Data JPA#

Spring Data JPA sits on top of JPA (specification) and Hibernate (implementation) to eliminate manual SQL and ResultSet handling. You define an interface, and Spring generates the full implementation at runtime.

Entity Mapping#

@Entity
@Table(name = "users")
public class User {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false)
    private String name;

    @Column(unique = true, nullable = false)
    private String email;

    @Column(name = "created_at")
    private LocalDateTime createdAt;
}

Primary Key Generation Strategies:

Repository Layer#

@Repository
public interface UserRepository extends JpaRepository<User, Long> {

    // Derived query — Spring generates SQL from method name
    Optional<User> findByEmail(String email);
    List<User> findByNameContaining(String keyword);
    List<User> findByAgeGreaterThanEqual(int age);

    // Custom JPQL query
    @Query("SELECT u FROM User u WHERE u.age > :age ORDER BY u.name ASC")
    List<User> findUsersOlderThan(@Param("age") int age);

    // Native SQL query
    @Query(value = "SELECT * FROM users WHERE email LIKE %:domain%",
           nativeQuery = true)
    List<User> findByEmailDomain(@Param("domain") String domain);

    // Pagination
    Page<User> findByDepartment(String department, Pageable pageable);
}

Pagination and Sorting:

// Page 0, 10 items per page, sorted by name ascending
Pageable pageable = PageRequest.of(0, 10, Sort.by("name").ascending());
Page<User> page = userRepository.findAll(pageable);

page.getContent();       // list of users
page.getTotalPages();    // total pages
page.getTotalElements(); // total count

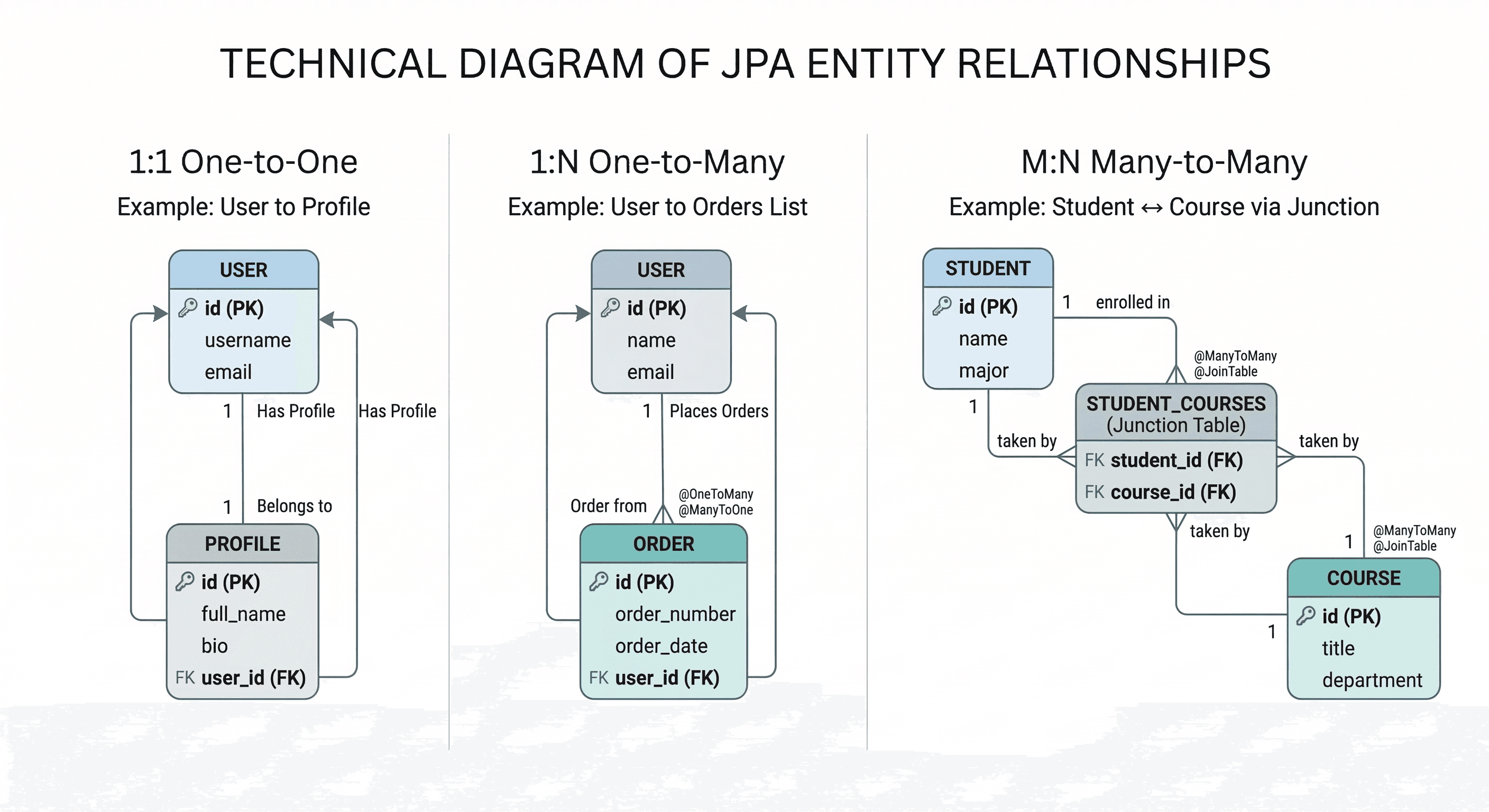

Entity Relationships#

One-to-One:

@Entity
public class User {
    @OneToOne(cascade = CascadeType.ALL)
    @JoinColumn(name = "profile_id")
    private Profile profile;
}

One-to-Many / Many-to-One:

@Entity
public class User {
    @OneToMany(mappedBy = "user", cascade = CascadeType.ALL)
    private List<Order> orders = new ArrayList<>();
}

@Entity
public class Order {
    @ManyToOne
    @JoinColumn(name = "user_id")
    private User user;
}

Many-to-Many:

@Entity
public class Student {
    @ManyToMany(cascade = CascadeType.ALL)
    @JoinTable(
        name = "student_course",
        joinColumns = @JoinColumn(name = "student_id"),
        inverseJoinColumns = @JoinColumn(name = "course_id")
    )
    private Set<Course> courses = new HashSet<>();
}

Fetch Types:

Prefer LAZY for collections to avoid loading unnecessary data.

Avoid infinite recursion in bidirectional relationships:

@OneToMany(mappedBy = "user")
@JsonManagedReference
private List<Order> orders;

@ManyToOne
@JsonBackReference
private User user;

10. Transaction Management#

Transactions ensure that a group of database operations either all succeed or all fail together, maintaining data integrity. Spring Boot provides declarative transaction management through the @Transactional annotation.

@Service
@Transactional
public class OrderService {

    @Transactional(readOnly = true)   // Optimizes read-only operations
    public Order getOrder(Long id) {
        return orderRepository.findById(id).orElseThrow();
    }

    @Transactional(rollbackFor = Exception.class)
    public Order createOrder(OrderRequest request) {
        Order order = orderRepository.save(buildOrder(request));
        inventoryService.deductStock(request.getItems());
        return order;
    }
}

Propagation Types:

Isolation Levels:

11. Async Processing#

@Async allows methods to run in a separate thread so the caller doesn't wait for completion. It is useful for sending emails, notifications, or any long-running task that doesn't need to block the main request.

// Enable async in config
@Configuration
@EnableAsync
public class AsyncConfig {

    @Bean(name = "taskExecutor")
    public Executor taskExecutor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(5);
        executor.setMaxPoolSize(10);
        executor.setQueueCapacity(100);
        executor.setThreadNamePrefix("Async-");
        executor.initialize();
        return executor;
    }
}

// Use in service
@Service
public class EmailService {

    @Async("taskExecutor")
    public CompletableFuture<String> sendEmail(String to, String content) {
        // runs in separate thread
        return CompletableFuture.completedFuture("Sent");
    }
}

12. Spring Security#

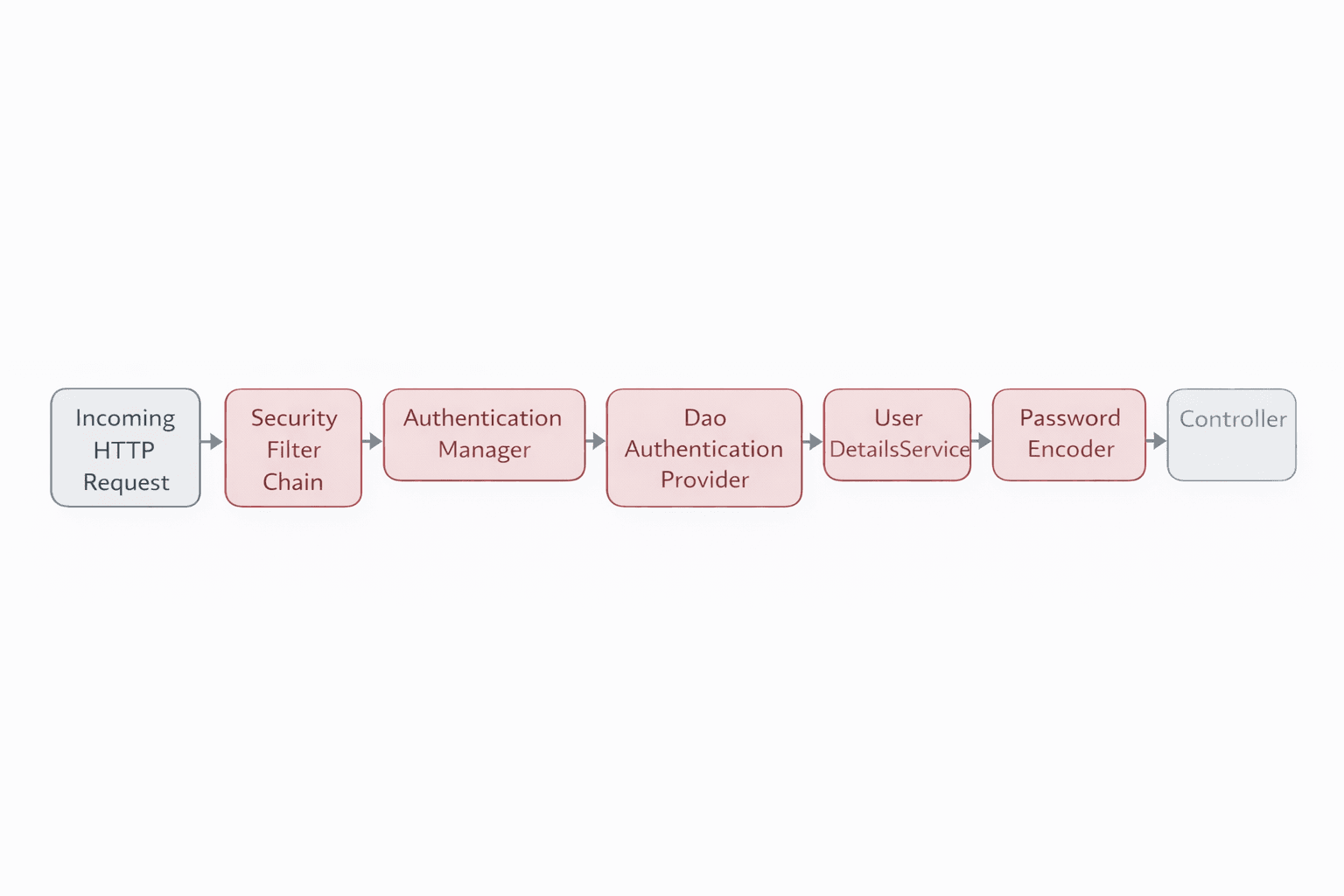

Spring Security intercepts every incoming request through a filter chain before it reaches your controllers. It handles authentication (who are you?) and authorization (what can you do?) in a structured, extensible way.

Security Filter Chain#

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .csrf(csrf -> csrf.disable())
            .sessionManagement(s ->
                s.sessionCreationPolicy(SessionCreationPolicy.STATELESS))
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/api/auth/**").permitAll()
                .requestMatchers("/api/admin/**").hasRole("ADMIN")
                .anyRequest().authenticated()
            )
            .authenticationProvider(authenticationProvider())
            .addFilterBefore(jwtFilter, UsernamePasswordAuthenticationFilter.class);

        return http.build();
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    public DaoAuthenticationProvider authenticationProvider() {
        DaoAuthenticationProvider provider = new DaoAuthenticationProvider();
        provider.setUserDetailsService(userDetailsService);
        provider.setPasswordEncoder(passwordEncoder());
        return provider;
    }
}

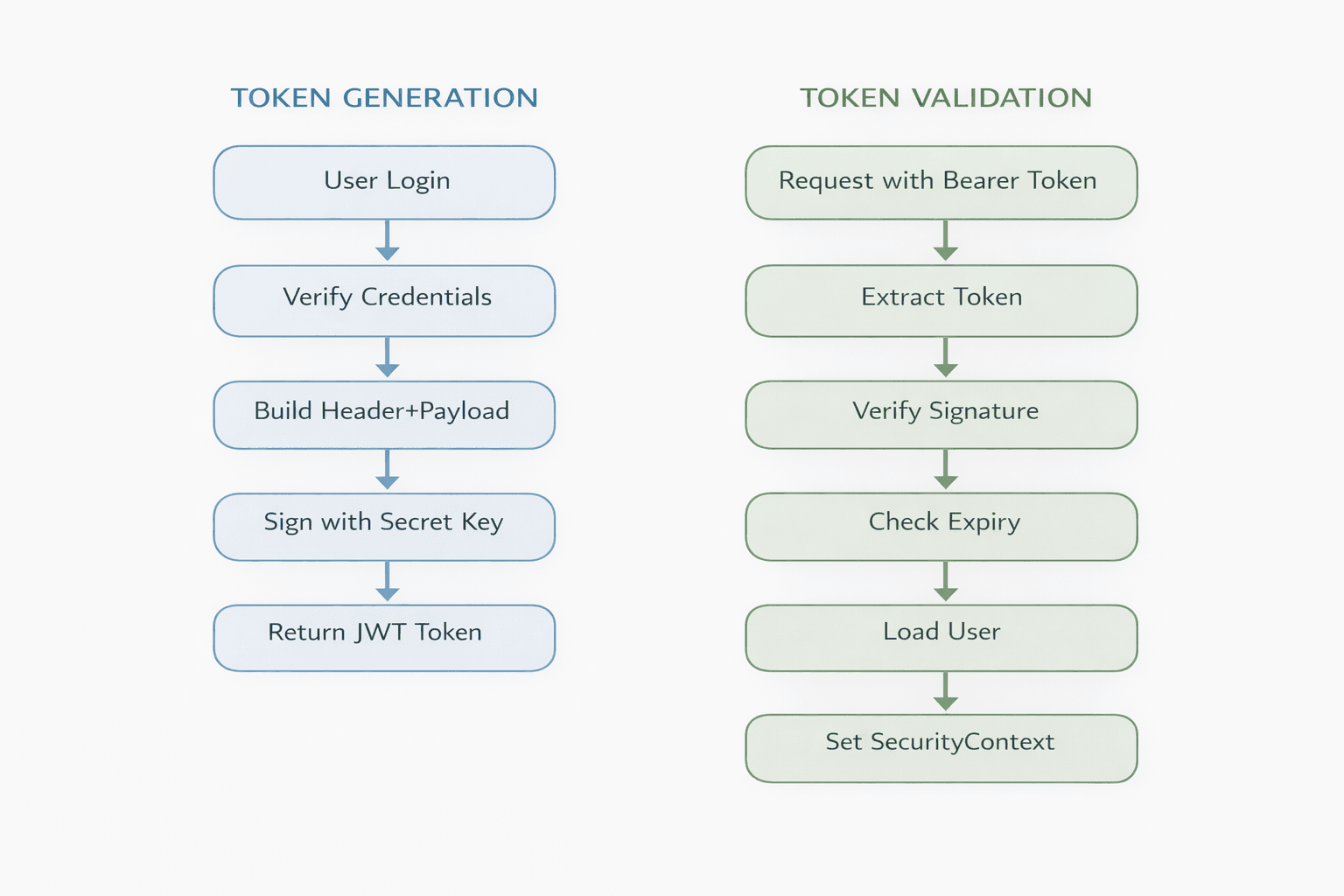

13. JWT Authentication#

JWT (JSON Web Token) is a stateless authentication mechanism where the server issues a signed token after login. The client stores the token and sends it with every request — no session storage needed on the server.

JWT Structure:

eyJhbGciOiJIUzI1NiJ9  ← Header (algorithm)
.eyJzdWIiOiJqb2huIn0  ← Payload (user data, expiry)
.SflKxwRJSMeKKF2QT4f  ← Signature (tamper-proof)

Never store passwords or secrets in the payload — it is Base64 encoded, not encrypted.

@Service
public class JwtService {

    @Value("${jwt.secret}")
    private String secret;

    private Key getSigningKey() {
        return Keys.hmacShaKeyFor(secret.getBytes());
    }

    public String generateToken(String username) {
        return Jwts.builder()
                .setSubject(username)
                .setIssuedAt(new Date())
                .setExpiration(new Date(System.currentTimeMillis() + 86400000))
                .signWith(getSigningKey(), SignatureAlgorithm.HS256)
                .compact();
    }

    public String extractUsername(String token) {
        return Jwts.parserBuilder()
                .setSigningKey(getSigningKey()).build()
                .parseClaimsJws(token).getBody().getSubject();
    }

    public boolean isTokenValid(String token, String username) {
        return username.equals(extractUsername(token)) && !isExpired(token);
    }
}

JWT Filter:

@Component
@RequiredArgsConstructor
public class JwtAuthenticationFilter extends OncePerRequestFilter {

    private final JwtService jwtService;
    private final UserDetailsService userDetailsService;

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                    HttpServletResponse response,
                                    FilterChain chain)
                                    throws ServletException, IOException {

        String authHeader = request.getHeader("Authorization");
        if (authHeader == null || !authHeader.startsWith("Bearer ")) {
            chain.doFilter(request, response);
            return;
        }

        String token = authHeader.substring(7);
        String username = jwtService.extractUsername(token);

        if (username != null &&
            SecurityContextHolder.getContext().getAuthentication() == null) {

            UserDetails userDetails = userDetailsService.loadUserByUsername(username);

            if (jwtService.isTokenValid(token, userDetails.getUsername())) {
                UsernamePasswordAuthenticationToken authToken =
                    new UsernamePasswordAuthenticationToken(
                        userDetails, null, userDetails.getAuthorities());
                authToken.setDetails(
                    new WebAuthenticationDetailsSource().buildDetails(request));
                SecurityContextHolder.getContext().setAuthentication(authToken);
            }
        }
        chain.doFilter(request, response);
    }
}

14. CORS Configuration#

CORS is a browser security restriction that blocks frontend apps on a different origin from calling your backend. The server must explicitly tell the browser which origins, methods, and headers are allowed.

@Bean
public CorsConfigurationSource corsConfigurationSource() {
    CorsConfiguration config = new CorsConfiguration();
    config.setAllowedOrigins(List.of("<http://localhost:3000>"));
    config.setAllowedMethods(List.of("GET","POST","PUT","DELETE","OPTIONS"));
    config.setAllowedHeaders(List.of("*"));
    config.setAllowCredentials(true);

    UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
    source.registerCorsConfiguration("/**", config);
    return source;
}

// Wire it in SecurityFilterChain
http.cors(cors -> cors.configurationSource(corsConfigurationSource()))

15. Logging with @Slf4j#

Spring Boot uses SLF4J with Logback by default. The @Slf4j annotation from Lombok auto-generates a logger instance so you can start logging immediately without boilerplate.

Log Levels (lowest to highest priority):

@Slf4j
@Service
public class PaymentService {

    public PaymentResult process(PaymentRequest request) {
        log.info("Processing payment for order: {}", request.getOrderId());
        log.debug("Payment amount: {}", request.getAmount());

        try {
            PaymentResult result = gateway.charge(request);
            log.info("Payment successful, transaction: {}", result.getTransactionId());
            return result;
        } catch (PaymentGatewayException e) {
            log.error("Payment failed for order {}: {}", request.getOrderId(), e.getMessage(), e);
            throw e;
        }
    }
}

Configuration:

logging.level.root=INFO
logging.level.com.example=DEBUG
logging.level.org.hibernate.SQL=DEBUG
logging.file.name=logs/application.log
logging.pattern.console=%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n

Best practices:

• Always use parameterized logging log.info("User: {}", name) not string concatenation
• Never log passwords, tokens, or card numbers
• Always include the exception object in log.error() for stack trace
• Use DEBUG and TRACE only — never INFO — for internal flow details

16. Testing#

Spring Boot provides excellent testing support out of the box. Following the testing pyramid — many unit tests, some integration tests, few end-to-end tests — gives you fast feedback with reliable coverage.

Unit Testing with Mockito#

Unit tests verify a single class in isolation. Mock all dependencies so the test only exercises the class under test.

@ExtendWith(MockitoExtension.class)
class UserServiceTest {

    @Mock
    private UserRepository userRepository;

    @Mock
    private PasswordEncoder passwordEncoder;

    @InjectMocks
    private UserService userService;

    @Test
    void shouldCreateUserSuccessfully() {
        // Arrange
        UserRequest request = new UserRequest("john", "pass", "john@example.com");
        User saved = new User(1L, "john", "encodedPass", "john@example.com");

        when(passwordEncoder.encode("pass")).thenReturn("encodedPass");
        when(userRepository.save(any(User.class))).thenReturn(saved);

        // Act
        User result = userService.createUser(request);

        // Assert
        assertThat(result.getId()).isEqualTo(1L);
        verify(userRepository, times(1)).save(any(User.class));
    }

    @Test
    void shouldThrowWhenUserNotFound() {
        when(userRepository.findById(99L)).thenReturn(Optional.empty());

        assertThatThrownBy(() -> userService.getById(99L))
            .isInstanceOf(ResourceNotFoundException.class);
    }
}

Controller Testing with MockMvc#

@WebMvcTest(UserController.class)
class UserControllerTest {

    @Autowired
    private MockMvc mockMvc;

    @MockBean
    private UserService userService;

    @Test
    void shouldReturnUser() throws Exception {
        User user = new User(1L, "john", "john@example.com");
        when(userService.getById(1L)).thenReturn(user);

        mockMvc.perform(get("/api/users/1"))
               .andExpect(status().isOk())
               .andExpect(jsonPath("$.name").value("john"));
    }
}

Repository Testing with @DataJpaTest#

@DataJpaTest
class UserRepositoryTest {

    @Autowired
    private UserRepository userRepository;

    @Autowired
    private TestEntityManager entityManager;

    @Test
    void shouldFindByEmail() {
        entityManager.persist(new User(null, "john", "john@example.com"));
        entityManager.flush();

        Optional<User> found = userRepository.findByEmail("john@example.com");
        assertThat(found).isPresent();
    }
}

Testing annotations summary:

17. Spring Boot Actuator#

Actuator exposes production-ready endpoints for health checks, metrics, and application info. It is essential for monitoring applications in production environments and integrates easily with tools like Prometheus and Grafana.

management.endpoints.web.exposure.include=health,info,metrics,env,loggers
management.endpoint.health.show-details=always
info.app.name=My Application
info.app.version=1.0.0

Common Endpoints:

18. Spring Boot DevTools#

Spring Boot DevTools enhances the development experience by providing automatic restarts, live reload, and development-time optimizations. It should never be used in production — it's strictly a development dependency.

xml

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-devtools</artifactId>
    <scope>runtime</scope>  <!-- Critical: excluded in production -->
    <optional>true</optional>
</dependency>

Key Features#

19. Caching#

Caching stores the result of expensive operations (database queries, API calls, computations) so repeated requests return instantly without re-executing the underlying logic. Spring Boot integrates with multiple cache providers through a unified abstraction layer.

Enable caching in your main config:

@Configuration
@EnableCaching
public class CacheConfig {
    // Spring Boot auto-configures a ConcurrentMapCache by default
    // For production, swap in Redis or Caffeine (see below)
}

Core caching annotations:

Practical service example:

@Service
public class ProductService {

    // Cache result — skip DB call if key already exists
    @Cacheable(value = "products", key = "#id")
    public Product getById(Long id) {
        return productRepository.findById(id).orElseThrow();
    }

    // Always update cache after save
    @CachePut(value = "products", key = "#result.id")
    public Product update(Long id, ProductRequest request) {
        return productRepository.save(buildProduct(id, request));
    }

    // Remove single entry on delete
    @CacheEvict(value = "products", key = "#id")
    public void delete(Long id) {
        productRepository.deleteById(id);
    }

    // Clear entire cache — useful after bulk operations
    @CacheEvict(value = "products", allEntries = true)
    public void clearAll() { }
}

Cache providers:

Redis setup :

spring.cache.type=redis
spring.data.redis.host=localhost
spring.data.redis.port=6379
spring.cache.redis.time-to-live=600000

Conditional caching:

// Only cache if result is not null
@Cacheable(value = "users", key = "#email", unless = "#result == null")
public User findByEmail(String email) { ... }

// Only cache for admin users
@Cacheable(value = "reports", condition = "#role == 'ADMIN'")
public Report generateReport(String role) { ... }

Best practices:

• Always set a TTL (time-to-live) — unbounded caches grow until OutOfMemoryError
• Use Redis in any multi-instance deployment — in-memory caches are per-JVM and go out of sync
• Cache at the service layer, never the controller or repository layer
• Keep cached objects serializable — required for Redis and most distributed providers
• Use @CacheEvict on every write operation that modifies cached data, or you'll serve stale results

20. API Documentation with Swagger / OpenAPI#

Springdoc OpenAPI auto-generates interactive API documentation from your existing controller annotations. It requires zero extra configuration to get started.

<dependency>
    <groupId>org.springdoc</groupId>
    <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
    <version>2.3.0</version>
</dependency>

After adding the dependency:

• Swagger UI: http://localhost:8080/swagger-ui.html
• OpenAPI JSON: http://localhost:8080/v3/api-docs

Allow these paths in your security config:

.requestMatchers("/swagger-ui/**", "/v3/api-docs/**").permitAll()

21. Build and Deployment#

Spring Boot packages the entire application — including the embedded server — into a single executable JAR. This makes deployment simple and consistent across all environments.

Build commands:

# Maven
mvn clean package
mvn clean package -DskipTests

# Gradle
gradle clean build
gradle clean build -x test

Run the JAR:

java -jar target/app.jar
java -jar target/app.jar --spring.profiles.active=prod
java -jar target/app.jar --server.port=9090
java -Xmx512m -Xms256m -jar target/app.jar

Dockerfile:

FROM openjdk:17-jdk-slim
COPY target/app.jar app.jar
EXPOSE 8080
ENTRYPOINT ["java", "-jar", "/app.jar"]

docker build -t myapp .
docker run -p 8080:8080 -e DB_PASSWORD=secret myapp

Quick Reference — Most Used Annotations#

Conclusion#

This Spring Boot cheat sheet covers everything from core concepts to production deployment in a concise, practical format. Master these fundamentals and you'll be ready to build production-ready applications with confidence. If you found this helpful, share it with your friends and colleagues — good knowledge grows when shared!
